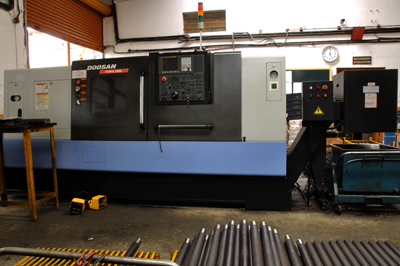

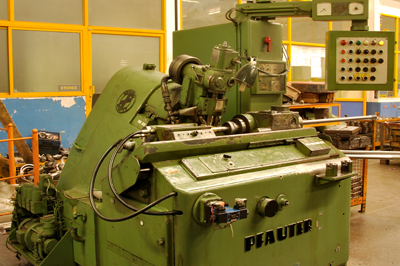

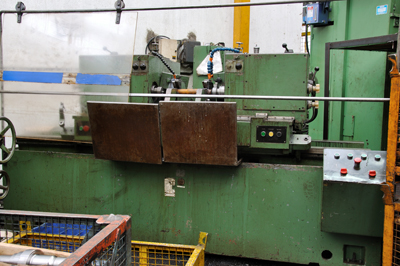

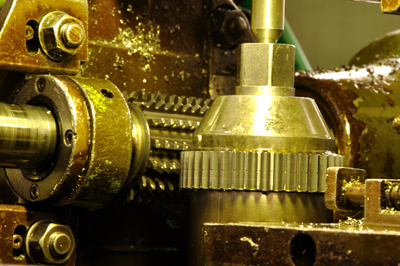

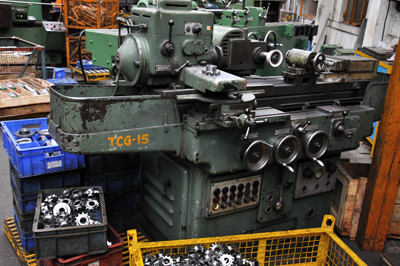

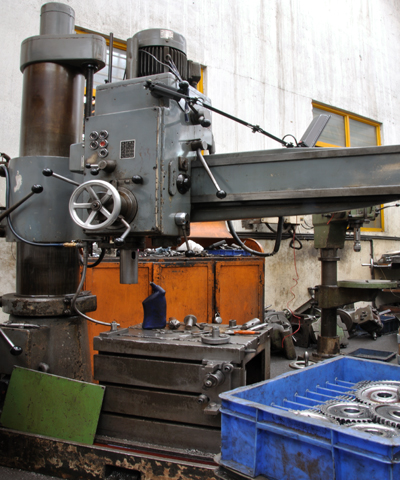

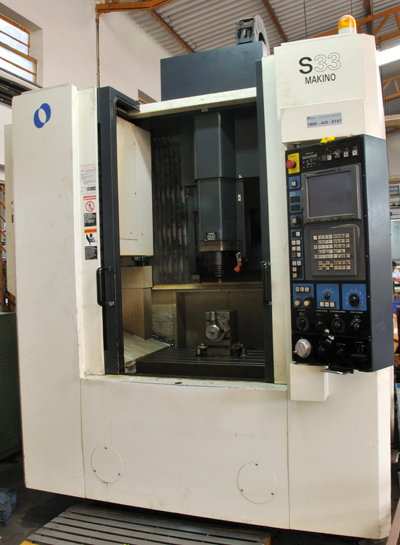

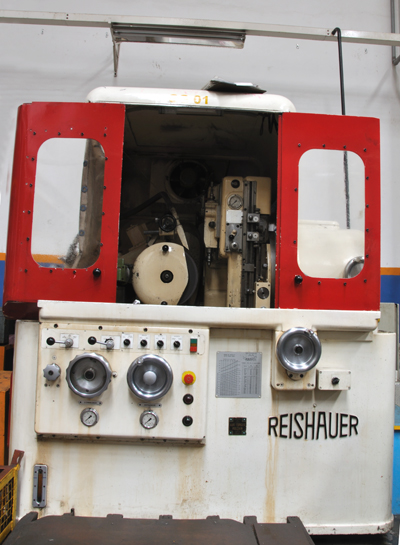

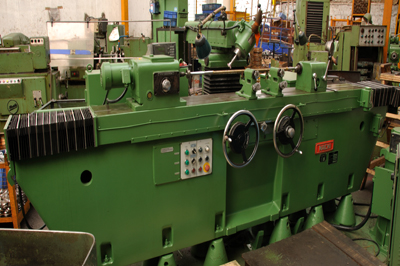

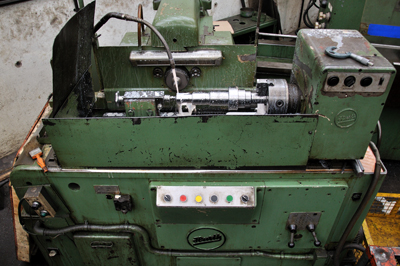

Machine Shop Tour
WORM REDUCTION GEAR BOX SINGLE OUTPUT
1 to 25 HP upto 1:50 Ratio
ABOUT
Worm reduction gearboxes are popular because they offer a high ratio of speed reduction in a small package. They are also known for their smooth and quiet operation, making them suitable for applications where noise reduction is important.
APPLICATION
Typical worm gear applications include presses, small engines, lifts and elevators, rolling mills, conveying engineering, mining industry machines, on rudders, and worm drive saws.
BEML WINCH GEAR BOX
1 to 25 HP upto 1:50 Ratio
ABOUT
Winches are complex mechanical devices that provide the necessary force and power to move heavy loads,A winch gearbox is a component of a winch that handles converting the power from the winch motor into the torque needed to turn the winch drum.
APPLICATION
"Winch gearboxes are used in a variety of industries, including: Construction for lifting heavy materials like concrete blocks and steel beams Mining for moving heavy mining equipment and extracting minerals Marine for anchoring, mooring, and towing vessels in shipyards and offshore operations Transportation of heavy items for loading and unloading cargo in trucks, trailers, and cranes "
L ANGLE BEVEL GEAR BOX TWO-WAY DRIVE
ABOUT
A bevel gearbox is a device that transmits, splits, or distributes the power of a rotating mechanical drive shaft through a defined angle
APPLICATION
"Such L angle bevel gear boxes are used in various applications like Food processing equipment Hydraulic press Can be used to split Power Drive, Power transmission equipment, Packaging equipment,Plastic, Rubber Printing Textile Machinery"
SCREW JACK CUSTOM MADE UP TO 50 TONS
ABOUT
A screw jack is a mechanical device that converts rotational motion into linear motion to lift heavy loads or apply a controlled force.
APPLICATION
Commonly used to lift moderate and heavy weights, such as vehicleramps and lifts; to raise and lower the horizontal stabilizers of aircraft; and as adjustable supports for heavy loads, such as the foundations of houses,Missile launching platforms etc.
STEERING TIE ROD ASSEMBLY
ABOUT
The steering tie rod assembly is a critical part of a vehicle's steering system that connects the steering gear to the steering knuckle on each front wheel
APPLICATION
Tie rod assemblies are used in various applications such as cross bracing, canopies, pipe hangers, and seismic upgrades.

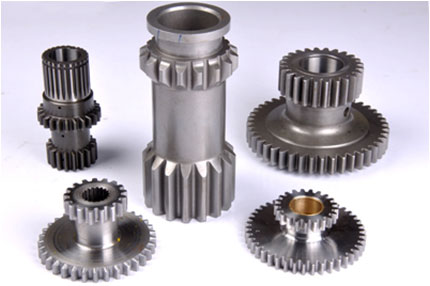

SPUR AND CLUSTER GEARS WITH BUSH
ABOUT
Spur gears are a type of cylindrical gear that are used to transmit power and motion between shafts to increase or decrease speed, or multiply torque.
APPLICATION
Spur gears are used in many applications, including aerospace, medical devices, robotics, food processing, packaging, and material handling.
SPROCKETS
ABOUT
A sprocket is a power transmission part, it shapes as a wheel with teeth that engage with a chain, belt, or other perforated material to transmit rotary motion between two shafts where gears are unsuitable or to impart linear motion to a track, tape etc.
APPLICATION
Sprockets are used in bicycles, motorcycles, tracked vehicles, and other industrial/agricultural machinery.
STRAIGHT AND HELICAL RACKS
ABOUT
Straight and helical racks are both types of gear racks that are used to convert rotational motion into linear motion, or vice versa. straight racks have teeth that are perpendicular to the rack's length, while helical racks have teeth that are angled.
APPLICATION
Straight racks are used in general applications with regular speeds, while helical racks are used for more precise applications with higher speeds and loads
SPLINE SHAFTS 50MM TO 1METER LONG
A spline shaft is a mechanical component that transfers torque between rotating parts while allowing for linear motion.
APPLICATION
"Spline shafts are used in many industrial applications, including Automotive transmissions, Industrial machinery, Robotics, Aerospace systems, Bicycles, and Motorized vehicles. "
HELICAL CLUSTER
ABOUT
Helical cluster gears are a combination of helical gears and a cluster gear assembly. Cluster Gears are assemblies of multiple gears that are used in applications where space is limited,
APPLICATION
These gears are often used in applications that require high speeds and high load bearing, as well as in applications where noise reduction is desired.
GEAR PUMP THRUST PLATE
A gear pump thrust plate is a key component that controls axial movement within a hydraulic gear pump, it helps in ensures optimal alignment between gears, which improves the pump's overall efficiency.
APPLICATION
Gear pump thrust plates are used in a variety of applications including: Hydraulic systems, Fuel transfer, Industrial machinery, Marine equipment etc.

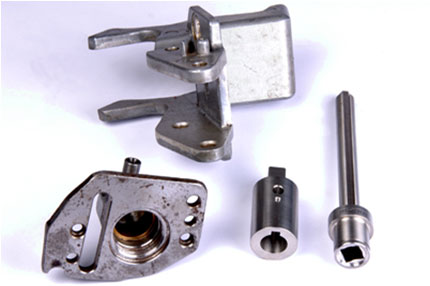

PUMP BODY ACCESSORIES machining
ABOUT
APPLICATION
BEVEL GEAR AND BEVEL PINOIN FOR ROTAWAITOR & OTHER APPLICATIONS
ABOUT
Bevel gears and bevel pinions are used to create mechanical systems that change speed and torque, particularly in applications where shafts are perpendicular.
APPLICATION
Bevel gears have many applications, including: Automotive, Hand drills, Rotorcraft drive systems, Printing presses, Industrial machinery, Power tools, Wind turbines and cooling towers, Marine applications, Railway track inspection machines ETC.
CHARGING PUMP INTERNAL AND EXTERNAL GEARS
ABOUT
Internal and external gear pumps are both types of pumps that use two interlocking gears to generate flow.
APPLICATION
Internal gear pumps are better for high viscosity and shear-sensitive fluids, and have better suction capabilities. External gear pumps are better for medium to low temperatures and high-pressure applications. External gear pumps are commonly used for metering, sampling, and transporting fuels, chemical additives, and polymers
INTERNAL GEARS AND SLEEVES
ABOUT
Internal gears, also known as ring gears, have teeth cut into the inside of a cylinder, while sleeve gears join transmission systems like shafts and ring gears.
APPLICATION
Internal Gears are ideal for transmitting high power within a small space and are used in robotic arms, hybrid vehicle power transmissions, planetary gear boxes, and more, and Sleeve joins transmission systems, such as shafts and ring gears.
HELICAL GEARS 0.5 TO 10 MODULE
ABOUT
A helical gear is a cylindrical gear with teeth that are cut at an angle to the gear's axis of rotation.
APPLICATION
Helical gears are often used in high-speed and high-torque mechanical systems, such as automotive transmissions, gearboxes, and generators.
SPUR GEARS- HOBBED, SHAVED AND GROUND
ABOUT
Spur gears are a type of cylindrical gear with straight teeth that run parallel to the shaft:
APPLICATION
Spur gears are used to transmit motion and power between two parallel shafts, and are commonly used in mechanical power transmission applications. they are commanly used in industries like: Automotive, Construction, Mining, Oil and gas, Packaging.
PUMP GEARS 2 TO 5 MODULE
ABOUT
A gear pump is a mechanical device that uses interlocking gears to move liquids or viscous materials in a precise and controlled manner.
APPLICATION
External gear pumps are often used to move water, such as flood water, rainwater, and firefighter water.
