Custom Built

BEVEL WHEEL & BEVEL PINION

Ratio: 1:1 / 2:1 / 3:1 / 4:1 / 5:1 / 6:1 Pitches: D.P. & Module (Metric)

APPLICATION

  •  To Transfer power at any required angle.
  •  Machine Tools Differential gear units, P.T.O.  Drivers.
  •  Bevel Gear Boxes, Actuators, Valve opening  System.

WORM & WORM SHAFT

APPLICATION

  • Screw Jacks, Different types of Reduction Gear Boxes, Lifts.
Worm Shaft: Generated profile Worm Shafts from single start to multi start with high helix angle and Speedometer Worms.

INTERNAL GEAR & PINION

Internal Gear: 400 dia 5 module 110 mm face width

APPLICATION

  • Final Drive (Tractors)
  • Sun & Planetary Drives, Machine Tools etc.

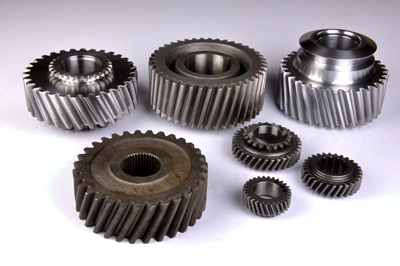

HELICAL GEAR & PINION

Helical Gear: 1000 Dia, 10 Module Helical Shaved: 220 Dia, 6 Module

APPLICATION

  • Used in Engines
  • Machinery
  • Reduction Gear Box

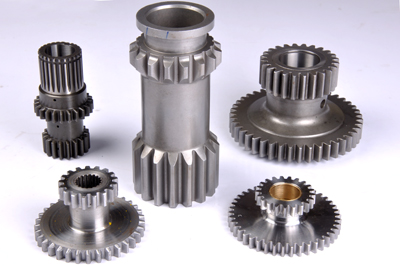

HELICAL CLUSTER

1000 Dia 10 Module

APPLICATION

  • Counter Gear in Automobile
  • Reduction Gear Boxes
  • Sugar & Cement Machinery
  • Earth Movers

HEAVY DUTY BEVEL DRIVERS

SOLID SHAFT & HALLOW SHAFT 2 WAY OR 3 WAY 900 DRIVE RATIOS (REDUCTION) 1:1 , 1.5:1 , 2:1 , 3:1

  • Grey Iron Housing (Steel Housing - Optional)
  • Straight Bevel Gears - Generated Profile
    (Helical Bevel & Spiral Bevel - Optional)
    HP Rating 1 to 50 - (Higher sizes - Option)
  • "Loose Feet" for various mountings - Optional
  • Universal Mounting & Rated for Continuous loading operations

LIGHT BEVEL DRIVER

Aluminium Housing/Cast Iron Housing

  • Packaging
  • Bottling
  • Conveying
  • Hydraulic Press
  • Can be used to split Power Drive
  • Plastic, Rubber Printing Textile Machinery
  • Chemical Mixer

SCREW JACKSAPPLICATION

  •  Paper Mill
  •  Packaging Machinery
  •  Sugar Machinery
  •  Power Station

WORM REDUCTION GEAR BOX1 to 25 HP upto 1:50 Ratio

APPLICATION

  • Speed Reduction
  • Wire Drying
  • Shelf Locking Systems

HELICAL REDUCTION GEAR BOX

1 to 25 HP upto 1:50 Ratio

  •  Ground Helical Gears & Shaved  Helical Gears
  •  Used to reduce Noise & Temperature
  •  Grey Iron Housing (Steel fabricated  housing - optional)
  •  Provision for mounting motors -  optional
  •  Used for extruders in injection  moulding and wire insulation  machinery
  •  Reduced speeds
